Football Fields

AAIF Group (the combined strengths of Al Amal, Al Mustaqbal, Forsan and Infinity) delivers turnkey football pitch solutions across the UAE, GCC and internationally. We provide site assessment, civil engineering, drainage systems, choice of playing surfaces (natural grass, hybrid, or artificial turf), pitch lighting, goal systems, perimeter fencing and long-term maintenance programs — all managed under a single accountable partner.

Why AAIF

Integrated delivery

Civil works, surface selection, structural fabrication and electrical/lighting under one contract to reduce handovers and speed delivery.

Regional experience

Materials and specifications adapted to GCC climate (UV-stable turf, corrosion-protected steel, water-efficient drainage).

Quality & compliance

Designs aligned with international pitch standards (FIFA/World Rugby guidelines where applicable) and verified QA procedures.

Aftercare & lifecycle management

Preventive maintenance contracts, seasonal field renovation, turf infill top-ups and spare-part support.

Field types & typical uses

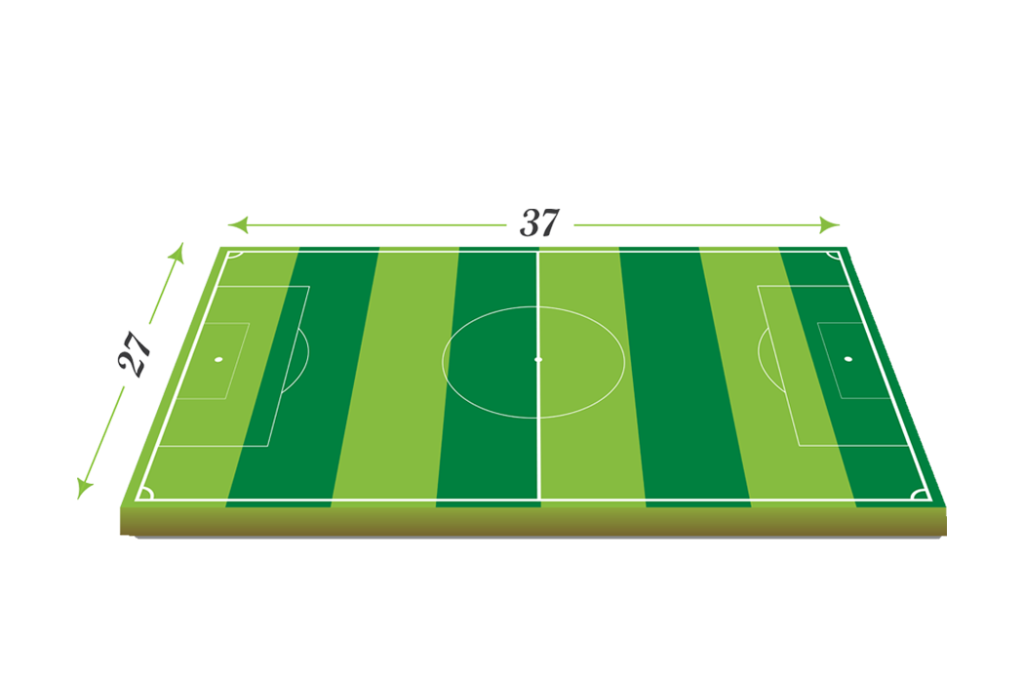

5 V 5 FootBall

Typical dimensions: 37 × 27 m

Use: 5-a-side recreational and training. Ideal for community centres, schools and rooftop / constrained sites.

Typical finish: artificial turf with perimeter fencing and ball-stop nets.

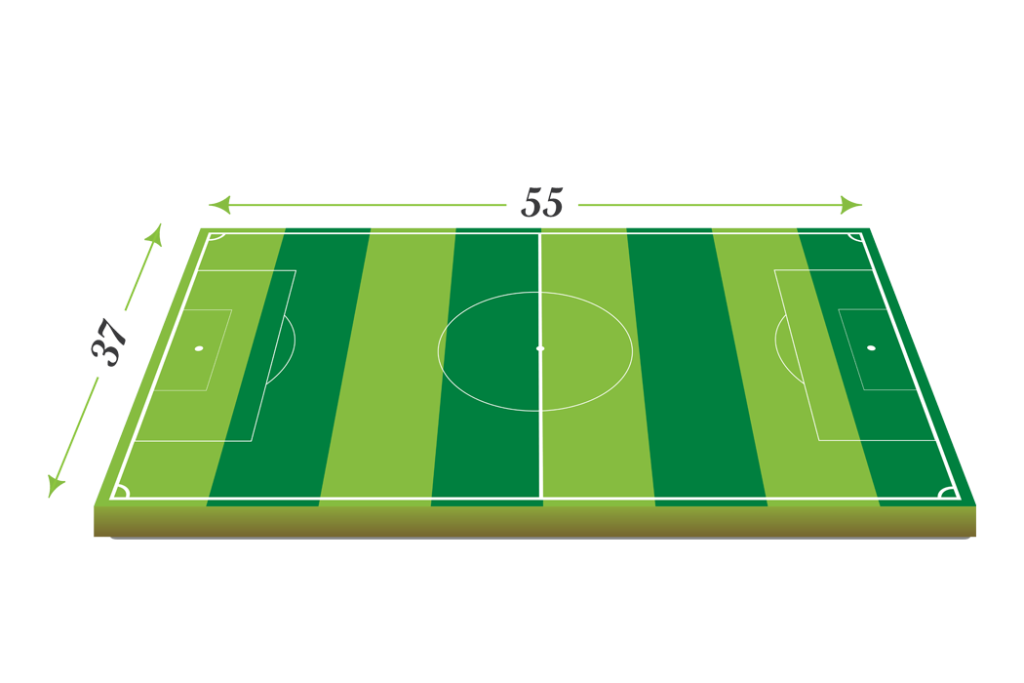

7 v 7 Football

Typical dimensions: 55 × 37 m

Use: Youth leagues, academy training and small-club matches.

Typical finish: synthetic turf or hybrid, standard drainage and LED training lights.

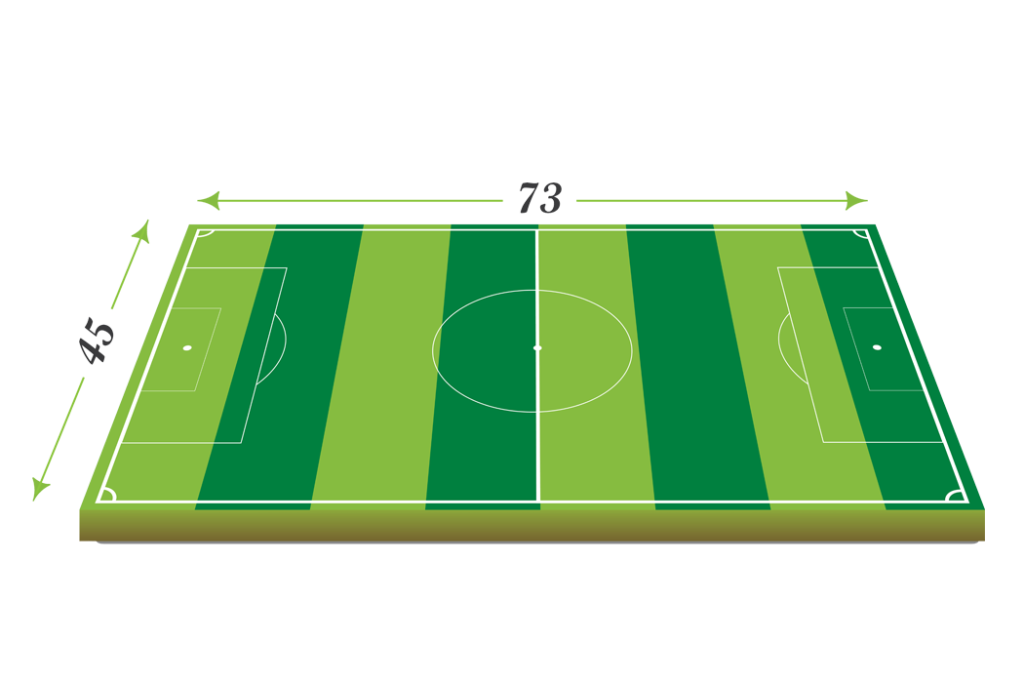

9 v 9 Football

Typical dimensions: 73 × 45 m

Use: Intermediate competition and larger training areas.

Typical finish: full engineered sub-base, competition turf options, spectator fencing.

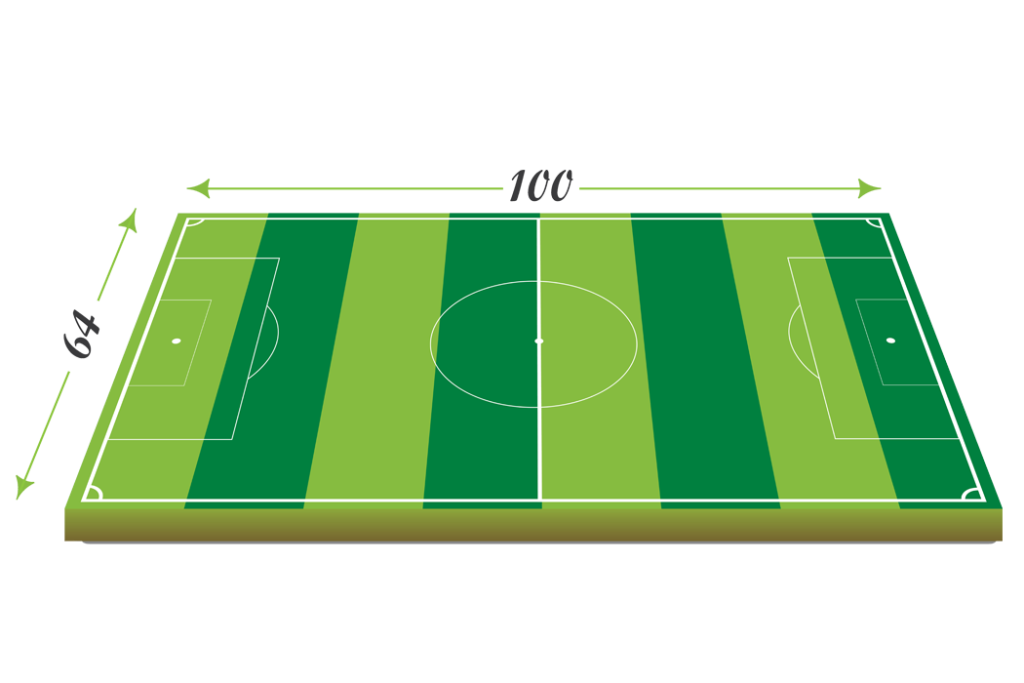

11 v 11 Football (Full-size)

Typical dimensions: 100 × 64 m

Use: Full-size match play — community, club or semi-professional stadiums.

Note: can be adapted to FIFA recommended dimensions (e.g., 105 × 68 m) if required.

Typical Technical Specification

Final specs are set after site survey and agreement.

Category	Specifications
⚽ Pitch Dimensions	11 v 11: 105 × 68 m (FIFA recommended). Alternatives: 100 × 64 m, 110 × 70 m. 9 v 9: 82 × 55 m (typical). 7 v 7: 65 × 45 m (typical). 5 v 5: 40 × 30 m (typical).
🌱 Surface Options	Natural turf: Bermudagrass varieties, irrigation system, rootzone specification. Hybrid turf: Reinforced rootzone with synthetic fibers. Artificial turf (3G / 4G): • Yarn: monofilament or slit-film. • Pile height: 40–60 mm. • Infill: silica sand / rubber / organic options. • Optional shockpad for player protection.
🛠 Sub-base & Drainage	Compacted engineered sub-base (stone/gravel) with geotextile. Permeable layer with line/slot drains connected to site drainage network. Designed for local rainfall intensity and pitch usage.
🎯 Line Markings & Goals	Thermoplastic or painted pitch markings. Certified steel/aluminium goalposts (portable or fixed), with safety anchorage and nets.
💡 Lighting & Electrical	LED luminaires: • Training: 200–300 lux. • Competition: 500–2000 lux. Includes cabling, DBs, earthing, timers, dimming/remote control.
🧱 Perimeter & Safety	Welded mesh or ball-stop fencing (3–6 m). Player shelters, dugouts, spectator seating, access ramps per design.
📜 Warranty & Lifespan	Turf manufacturer warranty: 6–10 years. Workmanship warranty: 1–3 years. Drainage & civil works: per contract and regulations.
